Consisting of:
“Ishida” Multihead weigher
Type CCW-EZ-214/30
- Heads: 14 pieces
- max 50 programs (0-49)
- Performance: up to max 99 weighings/min
- Accuracy: average 0 to + 1.0 g
- Weighing volume: 50-3000 g
- Display: micro controller display
- Ambient temperature: 0°C - 40°C
- Humidity: 35-85% (no condensation)
- Smallest setting: 0.1g
+

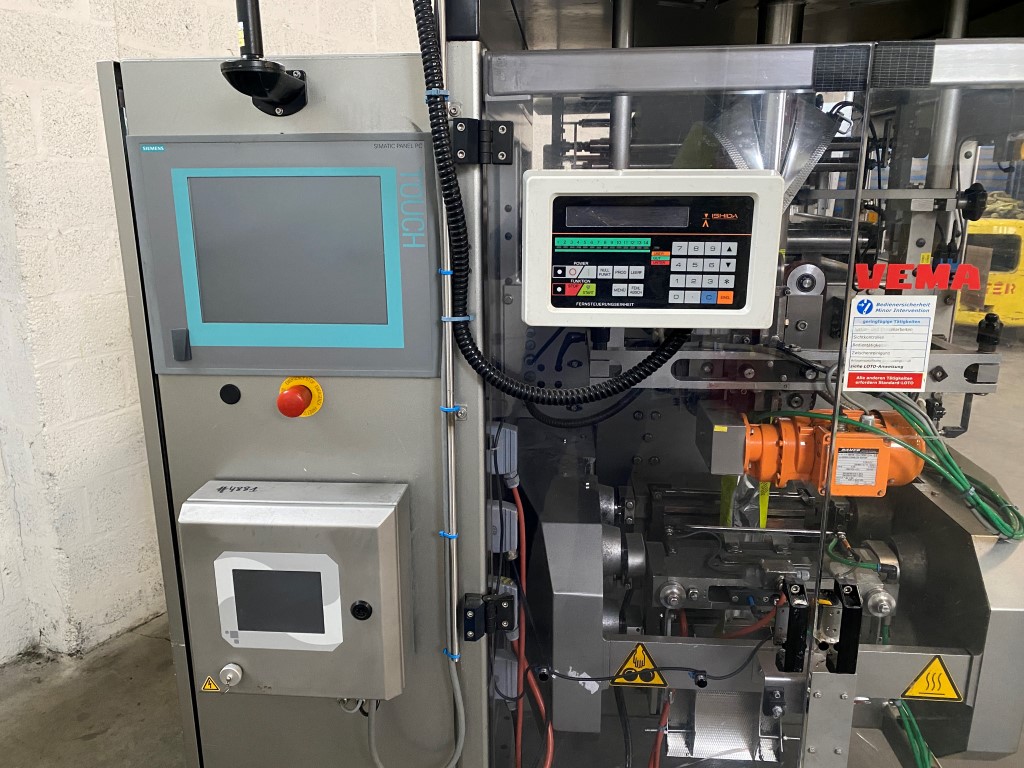

Vertical flowpackaging line “Rovema”
Type VPK260 - 14961
- yoc 2005
- Performance (mech.) Cycles/min: 180
- Roll width / diameter (max.) (mm): 450/ 550 (600 / 550 with pre-unrolling)
- Bag width (min. - max.) (mm): 60-260
- Bag length (min. - max.) (mm): 120-600
- Fill volume (max.) (cm³): 6000
- Sealing pressure (max.) (N): 5000 (optional: 8000)
- Program memory: Standard: 100 (optional: 1000)
- Dimensions: (L x W x H) (mm): 2.200 x 1.430 x 1.620 mm
- Weight: 920 kg
- Power supply (volts): 230 / 400
- Energy requirement (kVA): 8
- Protection class: IP54
- Compressed air connection: 6 bar
- Air consumption 6 bar (NI/cycle): 0.25
- Machine color: Ral 9007L / gray aluminum
- Operating temperature (min. – max.) (°C): +5 … + 45
- Storage temperature (min. – max.) (°C): -20 … +50
- Air humidity (max.) (%): 15…95; no condensation
“Ishida” Multihead weigher
Type CCW-EZ-214/30
+
Vertical flowpackaging line “Rovema”
Type VPK260 - 14960
- yoc 2005
- Performance (mech.) Cycles/min: 180
- Roll width / diameter (max.) (mm): 450/ 550 (600 / 550 with pre-unrolling)
- Bag width (min. - max.) (mm): 60-260
- Bag length (min. - max.) (mm): 120-600
- Fill volume (max.) (cm³): 6000
- Sealing pressure (max.) (N): 5000 (optional: 8000)
- Program memory: Standard: 100 (optional: 1000)
- Dimensions: (L x W x H) (mm): 2.200 x 1.430 x 1.620 mm
- Weight: 920 kg
- Power supply (volts): 230 / 400
- Energy requirement (kVA): 8
- Protection class: IP54
- Compressed air connection: 6 bar
- Air consumption 6 bar (NI/cycle): 0.25
- Machine color: Ral 9007L / gray aluminum
- Operating temperature (min. – max.) (°C): +5 … + 45
- Storage temperature (min. – max.) (°C): -20 … +50
- Air humidity (max.) (%): 15…95; no condensation
